1-port RS-232/485/422 to Ethernet Modbus Gateway
Support 1 RS-232/485/422 serial port to 1 10/100Base-T(X) self-adaptive Ethernet interface
Support conversion between Modbus RTU/ASCII and Modbus TCP protocol
Support RTU Master, RTU Slave, ASCII Master, ASCII Slave and other operating modes
Support virtual and real ID mapping to achieve flexible access between Master and Slave devices
Support -40~75℃ wide temperature operation

GW1101-1DI(3IN1)-DB-P(12-48VDC) is Modbus gateway designed for integrating Modbus
RTU/ASCII and Modbus TCP networks; they can achieve the conversion between Modbus
RTU/ASCII and Modbus TCP protocols. This product supports 1 3IN1 DB9 serial port to 1
100M Ethernet copper port. It adopts wall mounting to meet the requirements of different
application scenes.
Modbus gateway supports multiple network protocols, such as Modbus, TCP, IP, UDP,
TELNET, ARP, ICMP, HTTP, HTTPS, SNMP, SSH，SMTP, SNTP，DNS and DHCP protocols.
It possesses complete management function, and supports access control, rapid
configuration, online upgrading, etc. RTU Master, RTU Slave, ASCII Master, ASCII Slave
and other operating modes are supported; it supports up to 256 Modbus TCP client (master)
accesses and connects up to 128 Modbus TCP server (slave) devices. TELNET, WEB,
SSHD and other access modes are also supported. It can provide users with good
experience with friendly design of network management system interface, simple and
convenient operation.
DIP switch can achieve restore factory defaults of the device. Hardware adopts fanless, low
power consumption, wide temperature and voltage design and has passed rigorous
industrial standard tests, which can suit for the industrial scene environment with harsh
requirements for EMC. It can be widely used in PLC control and management, Building
Automation System, Health Care Automation System, measuring instrument and
environmental forces monitoring system, etc.

Features and Benefits

* Support 110bps-115200bps line speed and non-blocking communication

* Support RTS/CTS, DTR/DSR and XON/XOFF flow control
* Support response timeout setting of characters
* Support RTU Master, RTU Slave, ASCII Master, ASCII Slave and other operating modes
* Support up to 256 Modbus TCP client (master) accesses and connect up to 128 Modbus TCP server (slave) devices.
* Support virtual and real ID mapping to achieve flexible access between Master and Slave devices
* Support IP address and MAC address filtering, which can achieve accurate access control easily
* Support graded user management to implement humanized authority management
* Support serial port status and parameters monitoring, ensuring the communication status is easy to read
* Support multiple configuration forms and access controls like Windows configuration
tool, TELNET, SSHD and WEB

* File management is convenient for the device rapid configuration and online upgrading

* SSHD and HTTPS can guarantee the access security of data
* Conduct network diagnosis and troubleshooting via Ping and Traceroute
* Support multiple alarm methods, including e-mail alarm, log alarm and SNMP Trap
alarm

Ethernet Port	Standard: 10Base-T, 100Base-TX Protocol: Modbus TCP, TCP, IP, UDP, ARP, HTTP, TELNET, SNMP, ICMP, DHCP, DNS Rate: 10/100M automatic flow control, MDI/MDI-X autotunning Interface quantity: 1 Interface form: RJ45 Duplex mode: full/half duplex mode self-adaption
Serial Port	Standard: EIA RS-232C, RS-485, RS-422 Protocol: Modbus RTU/ASCII Quantity of serial port: 3IN1 serial port RS-232 signal: RXD, TXD, DTR, GND, DSR, RTS, CTS, DCD RS-485 signal: D+, D-, GND RS-422 signal: T+, T-, GND, R+, R- Baud rate: 300-115200bps Data bit: 5bit, 6bit, 7bit, 8bit Parity bit: None, Even, Odd, Space, Mark Stop bit: 1bit, 2bit Interface form: DB9 Flow control: RTS/CTS, DTR/DSR, XON/XOFF Direction control: RS-485 direction adopts automatic Data Direction Control technology Pull high/low resistor for RS-485: 4.7 kΩ Operating mode: RTU Master, RTU Slave, ASCII Master and ASCII Slave Connection quantity: up to 256 Modbus TCP client (master) accesses and connect up to 128 Modbus TCP server (slave) devices
Configuration	WEB configuration management, TELNET configuration, Windows configuration tool, SSHD configuration
Security	User right Classification, IP address filtering, MAC address filtering, SNMP-Mail-System Log alarm, HTTP/HTTPS/SSHD/TELNET access control
Indicator	Power supply indicator, Ethernet port indicator, serial port indicator
Power Requirement	12~48VDC, 3 pins 5.08mm pitch terminal blocks; Power supply nonpolarity
Power Consumption	No-load: 0.9W@12VDC Full-load: 1.1W@12VDC
Environmental Limit	Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）

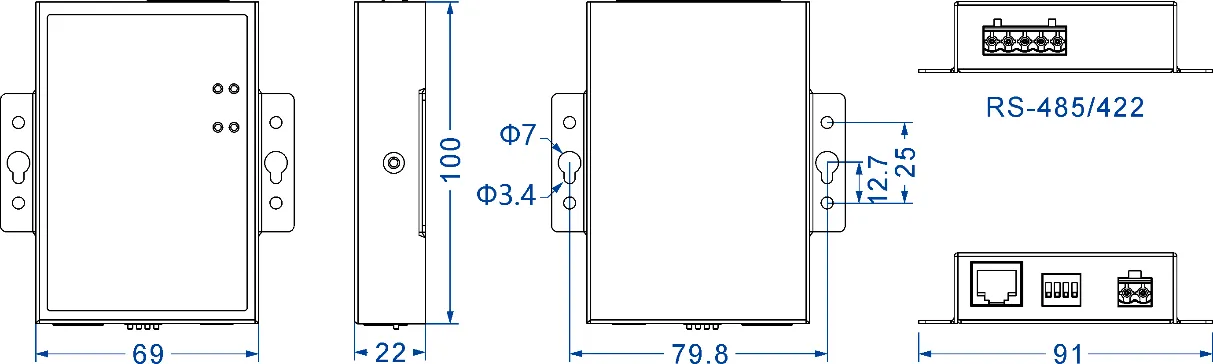

Physical Characteristic	Housing: IP40 protection, metal Installation: wall mounting Dimension (W x H x D): 69mm×22mm×100mm Weight: 230g
Industrial Standard	IEC 61000-4-2 (ESD, Electro-static Discharge), Level 4 Air discharge: ±15kV Contact discharge: ±8kV IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 Power supply: ±2kV Signal: ±1kV IEC 61000-4-5 (Surge), Level 3 Power supply: common mode ±2kV, differential mode±8kV Contact discharge: ±1kV Signal common mode ±1kV, differential mode ±1kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Certification	CE, FCC, RoHS
Warranty	3 years
